kWh Meter & Metered Power Outlet for a Melbourne Strata Car Park

kWh Metering for Strata & Common Property Power

A Practical Way to Monitor Electricity Usage from a Shared Supply

Monitoring Electricity Usage from Common Property

Shared electrical supplies can create an interesting challenge for Owners Corporations.

Sometimes a resident or particular use requires access to power within a common area, but simply connecting an outlet to the building's common supply doesn't provide any way of identifying how much electricity that outlet consumes.

One solution is dedicated kWh sub-metering.

Cable & Connect recently completed an electrical installation within a Melbourne basement car park involving a new power outlet and individual electricity meter.

Installing a Dedicated kWh Meter

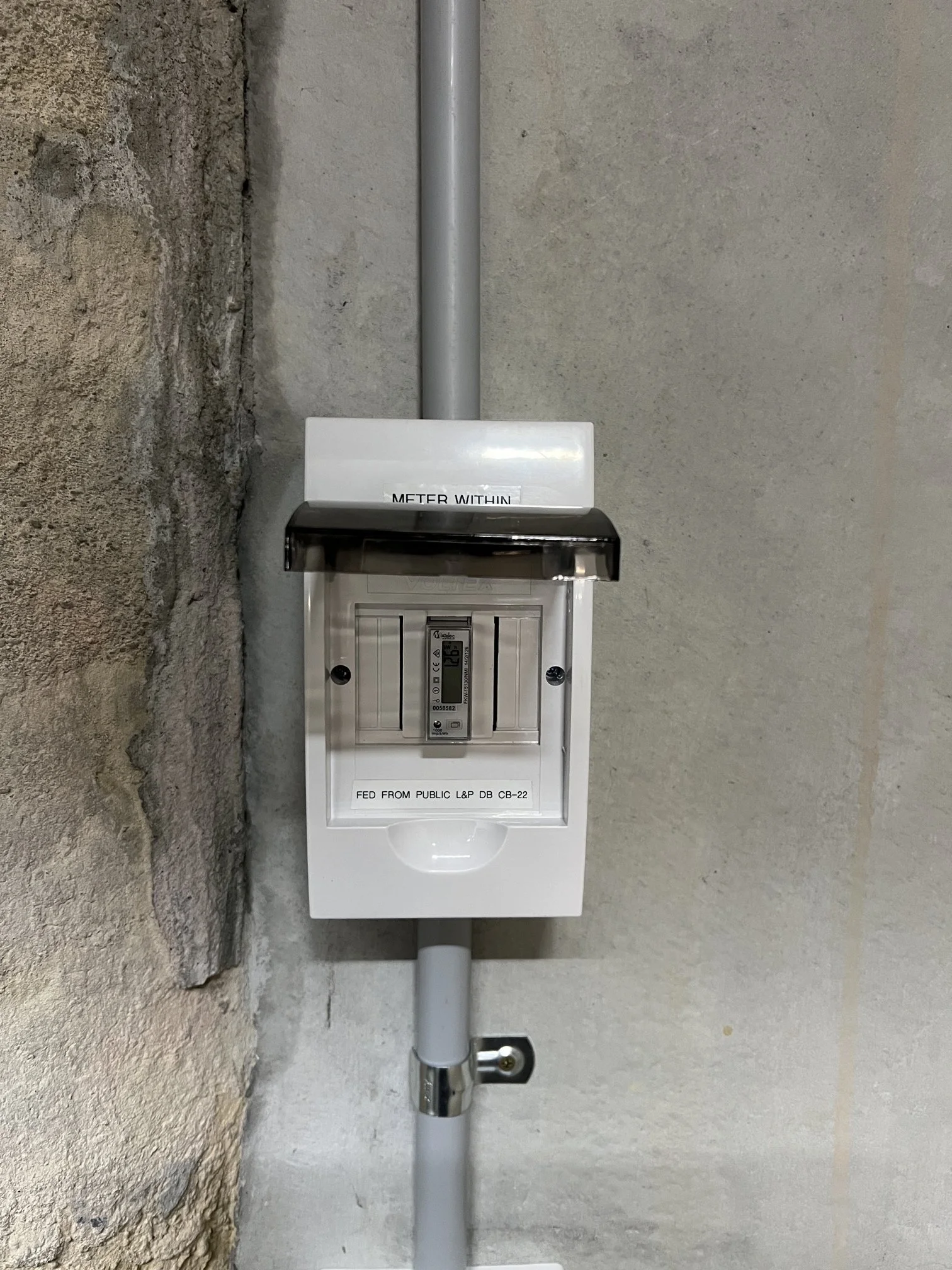

A DIN-rail single-phase kWh meter was installed adjacent to the power outlet within its own suitable enclosure.

The electrical supply was configured so electricity feeding the nominated outlet passes through the meter first.

This means the meter can record the energy consumed through that supply, providing a straightforward reference for monitoring usage.

The installation included the required metering wiring, terminations and identification, together with alterations to the existing circuit.

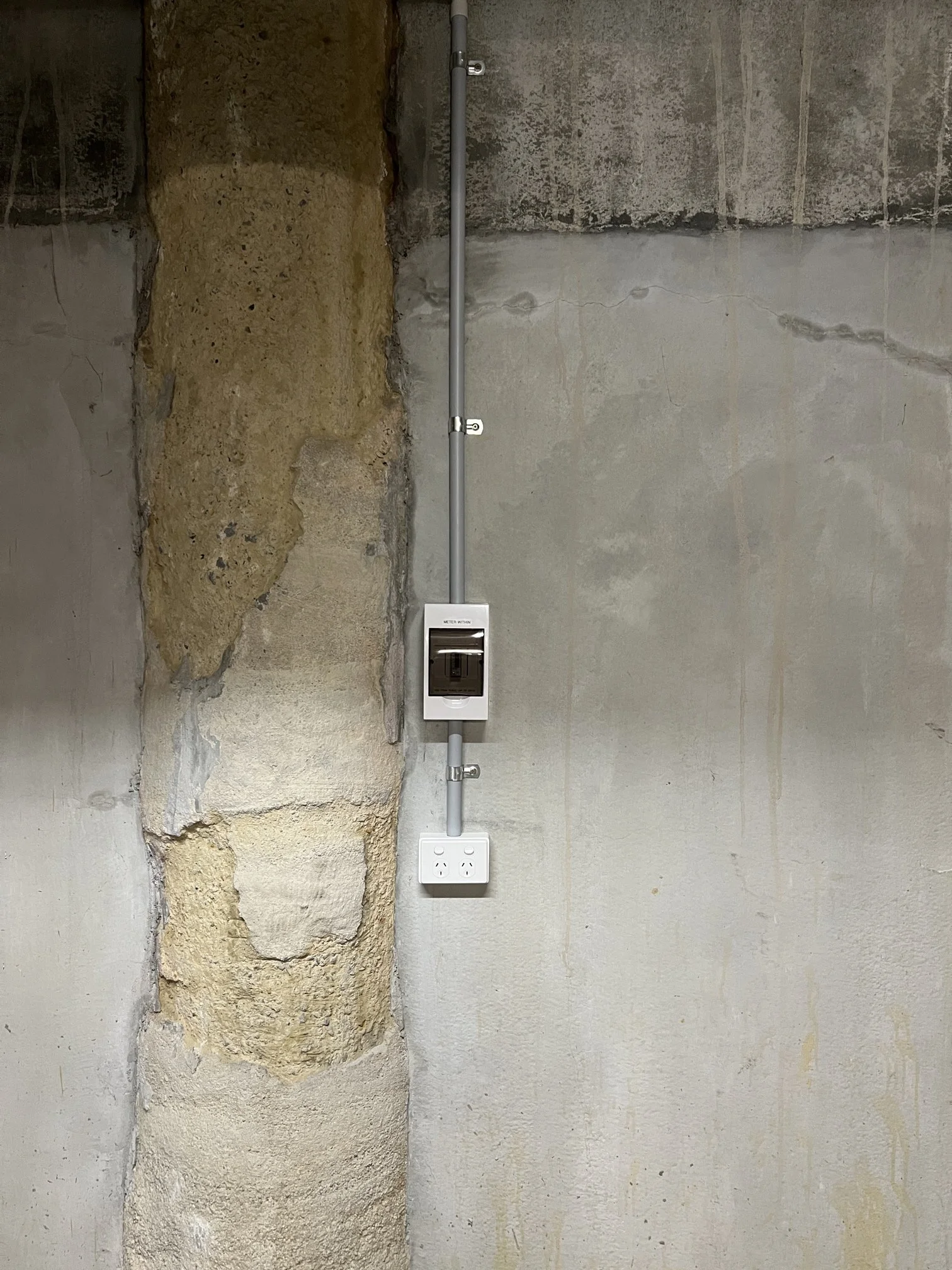

New Basement Power Outlet

A new double power point was also installed within the basement car park.

New cabling was run using conduit and suitable fittings to provide a neat, protected installation appropriate to the environment.

Once completed, our technicians tested the altered circuit, confirmed correct polarity and earthing and verified operation of both the outlet and kWh meter.

Where Can Individual Electricity Metering Be Useful?

Sub-metering can be useful in strata and shared-property environments where individual electricity consumption needs to be monitored separately from a common supply.

Every property and proposed load is different, so the existing electrical infrastructure and intended use need to be assessed before determining the appropriate solution.

Strata Electrical & Metering Solutions in Melbourne

Cable & Connect provides electrical services for Owners Corporations, strata managers and shared properties throughout Melbourne.

Our services include common-area power and lighting, electrical sub-metering, switchboard upgrades, fault finding and ongoing electrical maintenance.

If your property requires a way to monitor electricity usage from a common-property supply, speak with our team about the available options.
