Ubiquiti Network Installation in Eltham – From 100Mbps to 700Mbps with a Full Home Network Upgrade
Ubiquiti Home Network Installation in Eltham – A Complete Wi-Fi and Data Upgrade
Diagnosing the Problem – Why the Home Network Was Underperforming
When the homeowner in Eltham contacted Cable & Connect, the household was experiencing constant frustration with their internet connection. Streaming services were buffering, Wi-Fi coverage was inconsistent throughout the house, and multiple devices competing for bandwidth made the situation even worse.
Rather than simply replacing equipment, our team carried out a detailed onsite assessment of the existing network.
Using a Fluke network tester during the quoting stage, we were able to measure the real-world performance of the home’s internet connection and internal cabling infrastructure. The test results clearly showed the limitations of the existing setup and helped the client understand exactly why their home network was struggling to keep up with modern usage.
This diagnostic process allowed us to design a structured network solution tailored specifically to the home and the family's connectivity needs.
Designing a Ubiquiti Network Solution
Based on the testing data and the layout of the property, Cable & Connect designed a full Ubiquiti UniFi network installation to deliver strong Wi-Fi coverage, reliable wired connections and future scalability.
The solution included:
• Ubiquiti UCG Max gateway to manage the network and security
• 24-port PoE switch to power access points and connected devices
• U7 Pro wireless access points strategically positioned throughout the home

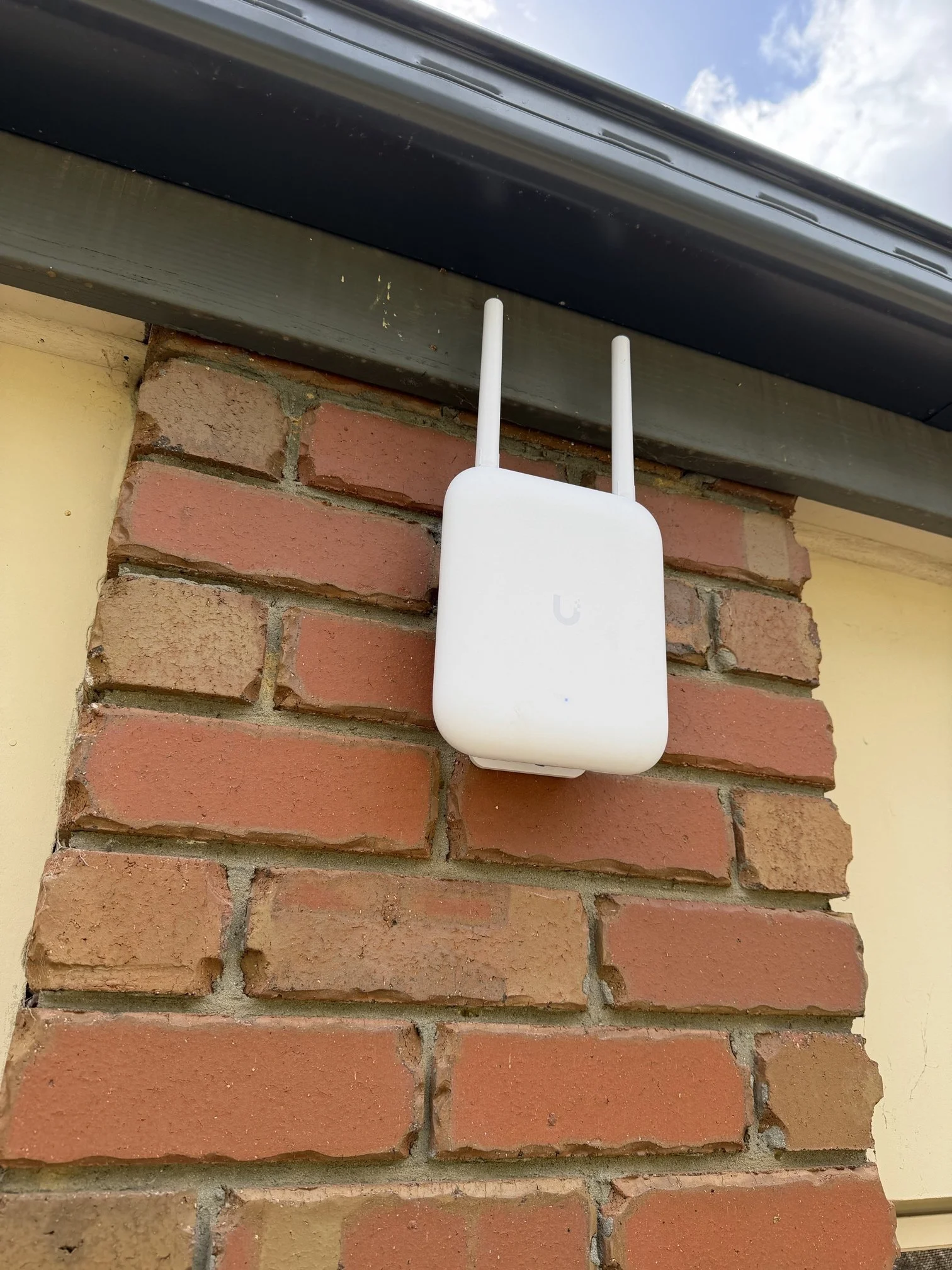

• U7 Outdoor access point to extend Wi-Fi coverage to outdoor areas
• Integration with the home's existing CCTV system
• Hardwired data points installed to TVs and the home office
• Full network rack clean-up and cable management
By designing the network architecture correctly from the start, we were able to ensure every component worked together efficiently.

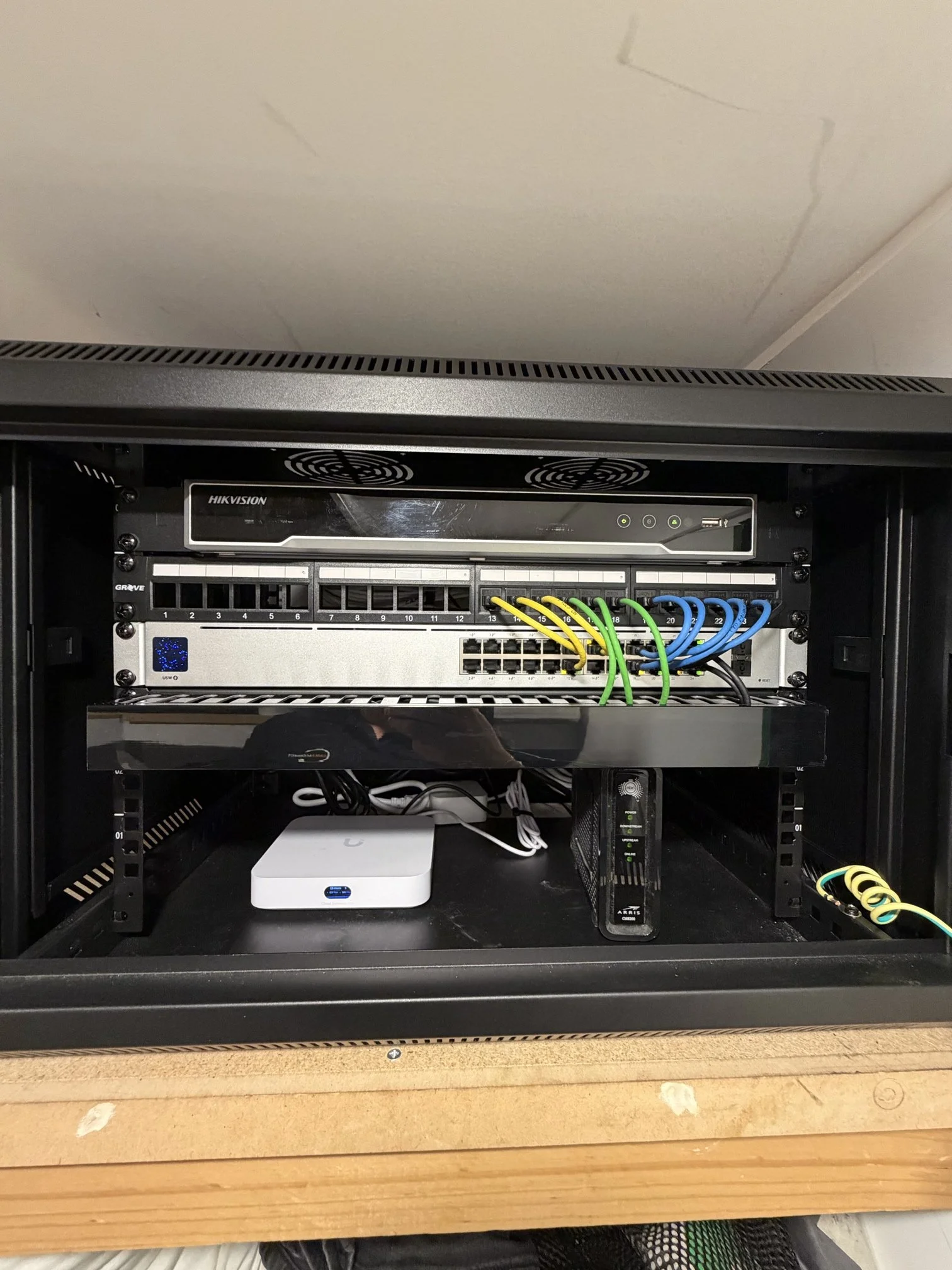

Structured Cabling and Network Rack Improvements
During the installation we also reorganised and cleaned up the home's existing network rack.
A properly organised rack setup is essential for long-term reliability and maintenance. By tidying up patching, improving cable management and integrating the new Ubiquiti hardware, the system is now significantly easier to manage and troubleshoot if required.
The new 24-port PoE switch provides flexibility for future expansion, allowing additional devices such as cameras, access points or smart home integrations to be added without redesigning the network.
The Results – From 100Mbps to Over 700Mbps
The difference in performance was immediate.
Before the upgrade, the household was seeing around 100 Mbps download speeds and experiencing unreliable Wi-Fi throughout the home.
After installing the new Ubiquiti network system and optimising the internal network infrastructure, speeds increased to over 700 Mbps, with strong and stable Wi-Fi coverage across the property.
More importantly, the network now supports multiple devices, streaming, work-from-home requirements and future smart home technology without the connectivity issues the family had been experiencing.
Why Proper Network Design Matters
One of the most common mistakes we see in residential networking is attempting to solve connectivity issues by simply upgrading the internet plan or adding more consumer-grade routers.
In many cases the real problem lies in network design, Wi-Fi coverage planning and structured cabling.
By properly assessing the existing infrastructure, testing performance and designing the network around the property layout, it’s possible to dramatically improve reliability and speed without unnecessary hardware upgrades.
